HPT File Editor 2026 (V3.6.2) HPT<->BIN | HPT<->CTZ | XDF Maker | HPT Sorter

Description

---

LIMITED TIME ONLY: (From April 1st till June 30th 2026)

You get a free 15 XDF credits after purchase when registering in the app, thats enough for 1 xdf file worth $150

UPDATE NOTES:

IF YOU UPDATED TO V 3.5.5 AND NOW EXPERIENCE APP NOT OPENING, CONTACT US, OR START A CHAT WE WILL HELP. CHANGED APP VERIFICATION AND SOME LICENSES DIDNT PORT OVER. WE WILL REACTIVATE FREE OF CHARGE

If you would like to support us and have XDF files that arent shown on server, contact us and we can work out a deal that is good for both of us. We are also looking for testers for some other new software as well as anyone with some coding experience or has any tools or scripts that you think would be good to add.

3/30/26 – V3.6.2

• Added more support to HPT<->CTZ (GM TCM Modules)
• Added XDF Maker (Uses credit based system to use)
• Implement XDF API and credit system
• Ported in engine for ECU patching tool. (still under development)
• Ported in engine for GPEC Unlocker (will use credit system as well, under development)
• Added reply and chat withing the tool and implement support ticket system

3/2/26 – V3.5.5

• Added Locked File checkbox for CTZ to BIN conversion — supports locked/encrypted v13+ CTZ files.
• Fixed HPT to BIN export producing incorrect file sizes for modified HPT files.
• Removed standalone EFI BIN to HPT button (use HPT to EFI workflow instead)
• Debug logging disabled in release builds.
• General code cleanup and stability improvements.

HPT File Editor 2026

PRICE IS FOR 1 PC INSTALL ONLY – Will be done same day immediatly after purchase

KG IS AVAILABLE – CONTACT US FOR PRICE

Advanced HPT File Conversion & Metadata Editor for VCM Suite 5.3+

Short Description

HPT File Editor 2026 is a purpose-built utility designed to work with new-format HPT files read using VCM Suite 5.3 and newer. It allows fast inspection, editing, and conversion between HPT and BIN formats while preserving critical OS and module metadata—ideal for advanced calibration workflows and file recovery scenarios.

---

Full Description

What this program does:
– Opens and analyzes HPT files
– Lets you edit/view data (including Hex view)
– Converts between HPT/BIN formats
– Converts HPT to EFI Live BIN format (L5P, LML, E86A, T87, T87A, A50)
– Converts CTZ files to BIN or HPT (supports locked CTZ files)
– Performs segment swap operations
– Unlocks GPEC ECU calibration files (GPEC2, GPEC2A, GPEC3, GPEC4)
– Download XDF definition files for your OS (credit-based system)
– Submit feedback and receive developer replies in-app
– Saves rebuilt output files

Top Tabs:
1) MAIN/UNLOCK
2) CONVERT (HPT-BIN | BIN-HPT | CTZ | HPT to EFI BIN)
3) Segment Swap

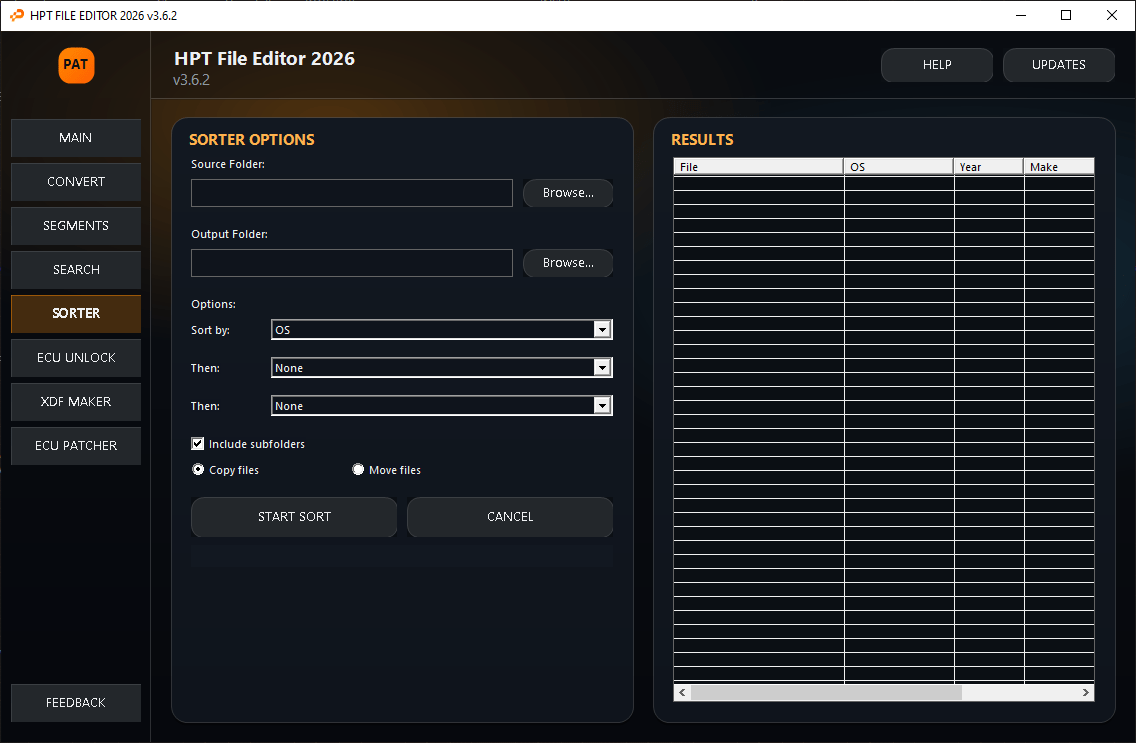

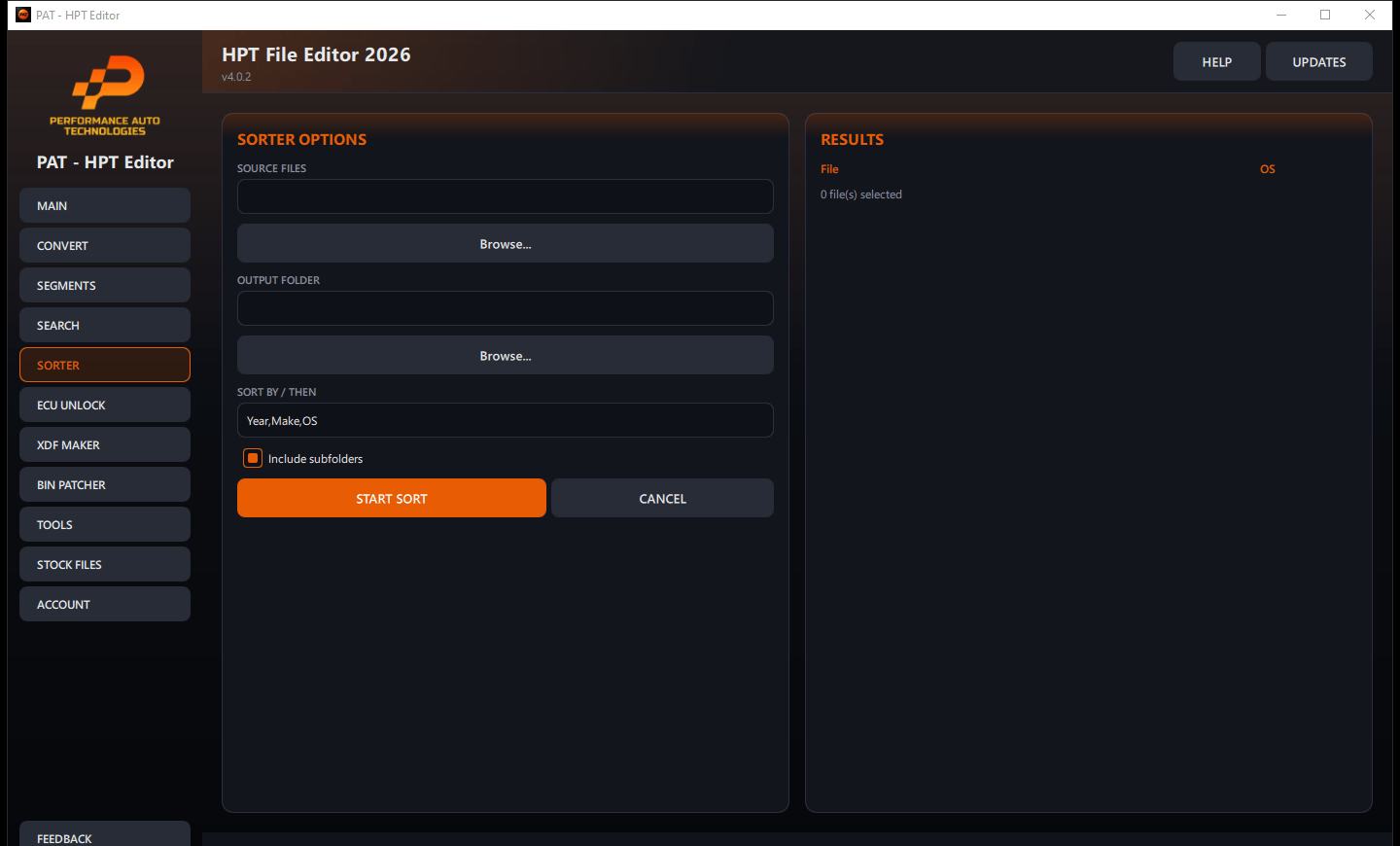

4) OS Sorter
5) ECU Unlock (GPEC Unlocker)
6) Feedback & Messaging
7) XDF (Definition File Downloads)

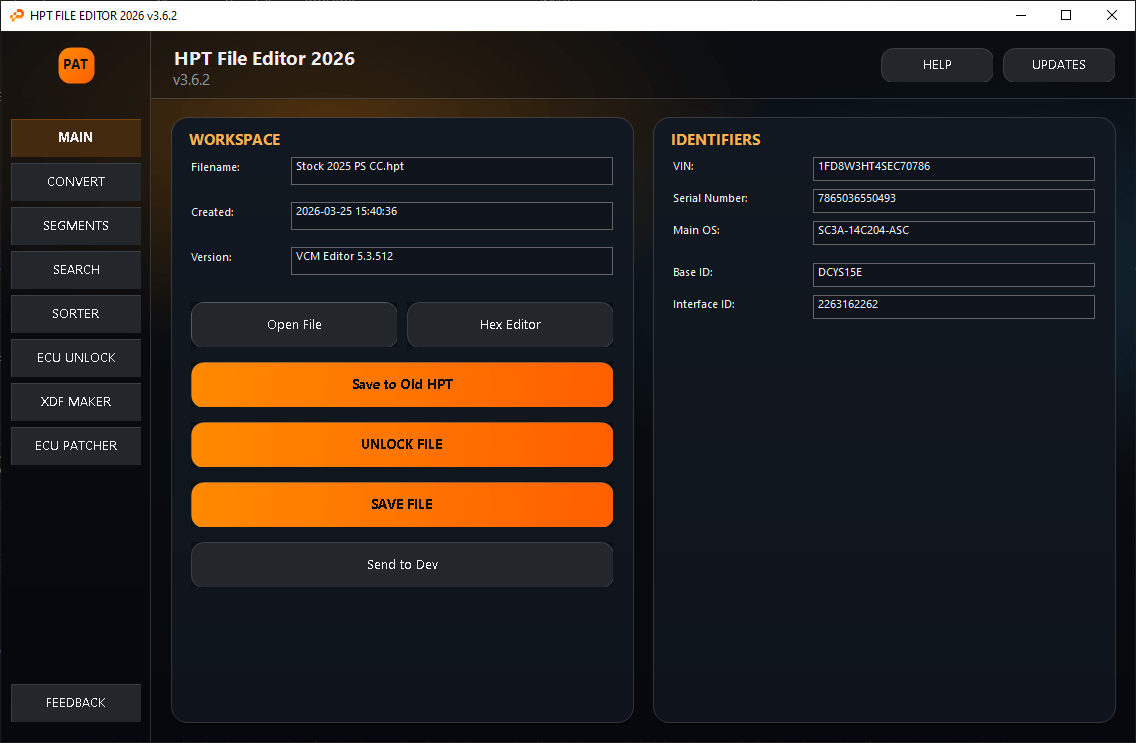

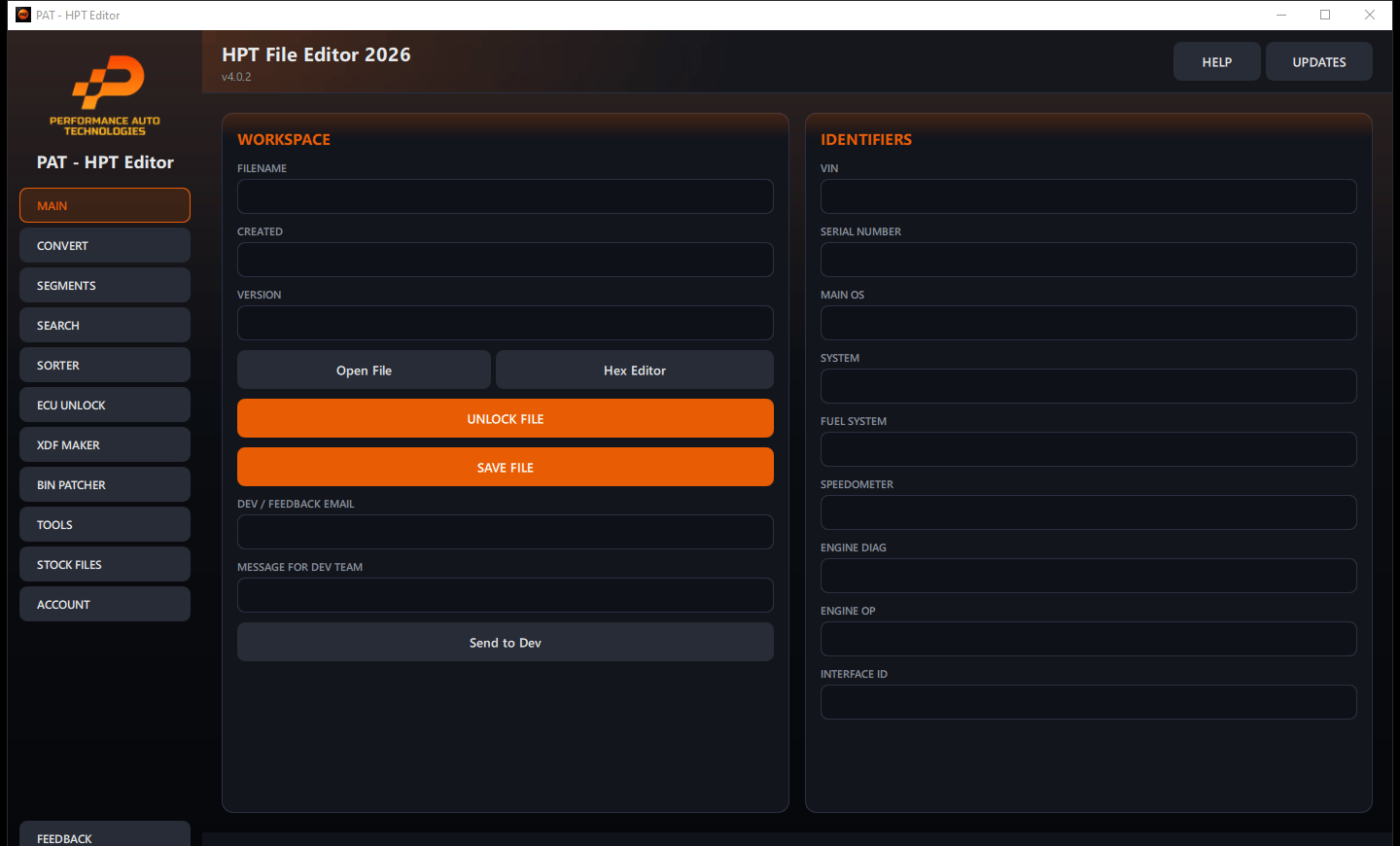

MAIN/UNLOCK tab functions:
– Open File: Load a source .hpt file and parse module/segment info.
– Hex Editor: Open advanced hex window for raw/segment editing.
– Convert HPT: Convert loaded file between supported HPT versions and save a new file.
– Unlock File: Run standalone unlock patch flow on compatible files.
– Save File: Rebuild and save current working file after changes.

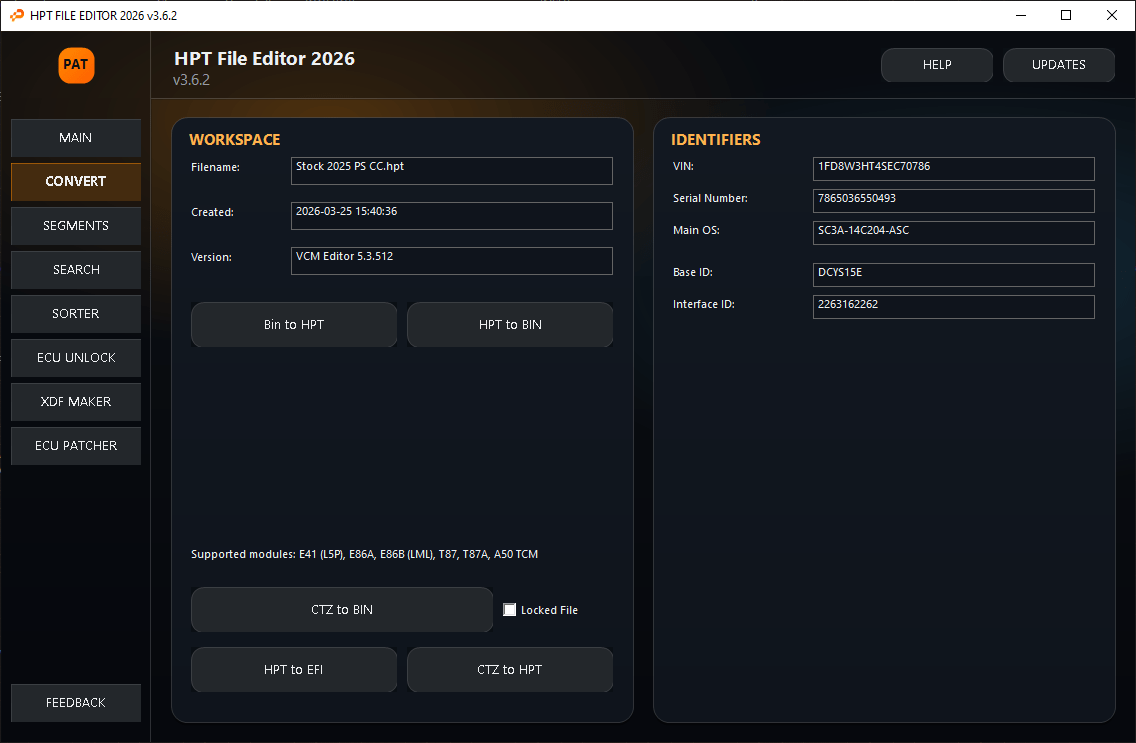

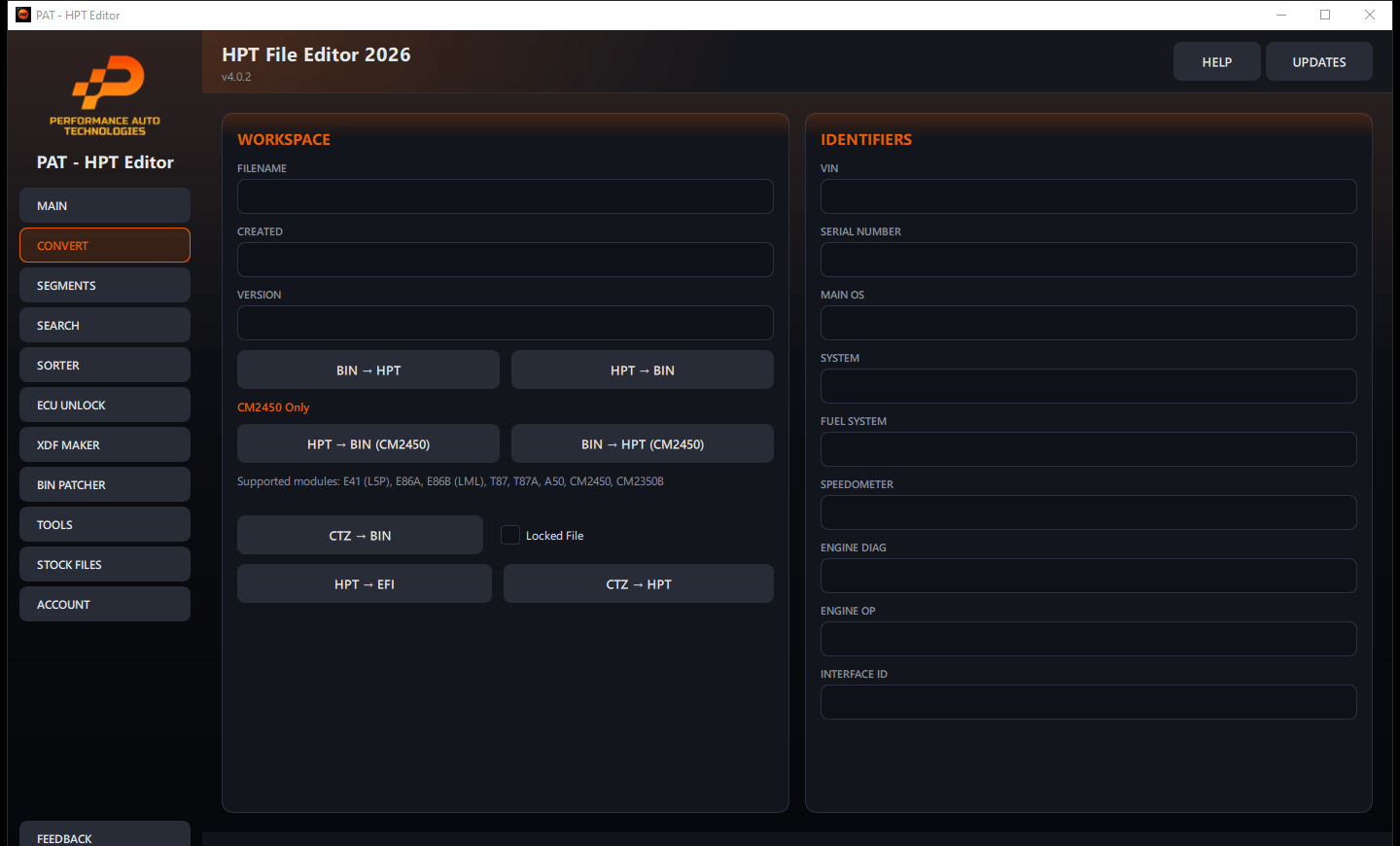

CONVERT tab – Row 1:
– Bin to HPT: Build/write HPT-compatible output from BIN workflow.
– HPT to BIN: Export either full BIN or separate segment BIN files.
(You will be prompted to choose export mode.)

CONVERT tab – Row 2:
– CTZ to BIN: Decrypt and decompress a .ctz file to raw .bin format.
Use the ‘Locked File’ checkbox for locked/encrypted .ctz files.
– CTZ to HPT: Convert a .ctz file directly to HPT format.
– HPT to CTZ: Convert HPT data to an EFI Live compatible .bin file.
(See details for each below.)

---

HPT TO EFI BIN CONVERSION (HPT to CTZ button):

Converts HPT calibration data to an EFI Live compatible .bin file.
EFI Live can open these .bin files natively.

How to use:
1) Click ‘HPT to CTZ’ on the Convert tab.
2) If an HPT file is loaded, choose to use it or open a different HPT.
If no HPT is loaded, you will be prompted to select one.
3) Module type (L5P, LML, E86A, T87, T87A, A50) is auto-detected from calibration size.
4) Choose where to save the output EFI .bin file.

E41 Controller Blocks (L5P):
EFI Live uses E41 controller blocks for segment checksum validation.
These blocks are preserved automatically when using the CTZ->HPT->EFI BIN
workflow via .e41 sidecar files:

RECOMMENDED WORKFLOW:
1) Convert your CTZ to HPT first (CTZ to HPT button)
-> Saves a .hpt file AND a sidecar file (.e41, .a50, or .t87a)
2) Make your edits to the HPT file
3) Convert HPT to EFI BIN (HPT to EFI button)
-> The sidecar is loaded automatically for valid EFI format

TCM modules (T87, A50, T87A) have EFI controller identification data
embedded in the executable. HPT to EFI conversion always produces
valid EFI Live compatible .bin files for these modules.

L5P: If no .e41 sidecar is found, you will be prompted to load
a reference EFI Live .bin file for E41 controller blocks.

Supported modules and file sizes:
L5P Duramax (17-19): HP Tuners = 5,898,192 bytes | EFI Live = 6,299,648 bytes
LML Duramax (15-16): HP Tuners = 4,194,304 bytes | EFI Live = 4,325,376 bytes
E86A LML (11-14): HP Tuners = 9,175,040 bytes | EFI Live = 3,276,800 bytes
T87 TCM (6L80/6L90): HP Tuners = 4,128,768 bytes | EFI Live = 4,194,304 bytes
A50 TCM (6T70/6T75): HP Tuners = 2,555,904 bytes | EFI Live = 2,621,440 bytes
T87A TCM (10L80/90): HP Tuners = 2,621,392 bytes | EFI Live = 4,202,496 bytes

E86A NOTE: Place ‘EFI Padding.bin’ (393,216 bytes) in the same folder
as this application. It is required for 11-14 E86A LML conversions.

---

CTZ CONVERSION:

• CTZ to BIN: Native CTZ file converter (no external tool needed).
  Converts EFI Live .ctz calibration files to raw .bin format.
  Supports both unlocked and locked .ctz files.
  The output .bin is in EFI Live format and can be used as a reference
  file for E41 controller blocks when converting HPT to EFI BIN.

LOCKED FILE CHECKBOX:
Check the ‘Locked File’ checkbox next to the CTZ to BIN button
before converting if your .ctz file is locked/encrypted.
If unchecked, the converter will auto-detect the file type.

How to use:
1) Check ‘Locked File’ if your .ctz is locked (optional).
2) Click ‘CTZ to BIN’ on the Convert tab.
3) Select a .ctz file to convert.
4) Choose where to save the output .bin file.

• CTZ to HPT: Converts a .ctz file to HPT format.
  Works natively without requiring an HPT file to be loaded.
  If an HPT is loaded, imports CTZ data into its segments.
  If no HPT is loaded, creates a new HPT file directly.
  For L5P/LML: Automatically saves a .e41 sidecar file alongside the HPT
  output. This sidecar preserves E41/controller block data for later
  conversion back to EFI BIN format with valid checksums.
  1) Click ‘CTZ to HPT’ on the Convert tab.
  2) Select the .ctz file to import.
  3) The CTZ is decrypted/decompressed to BIN, then converted to HPT.
  4) The HPT (and .e41 sidecar) is saved automatically.

---

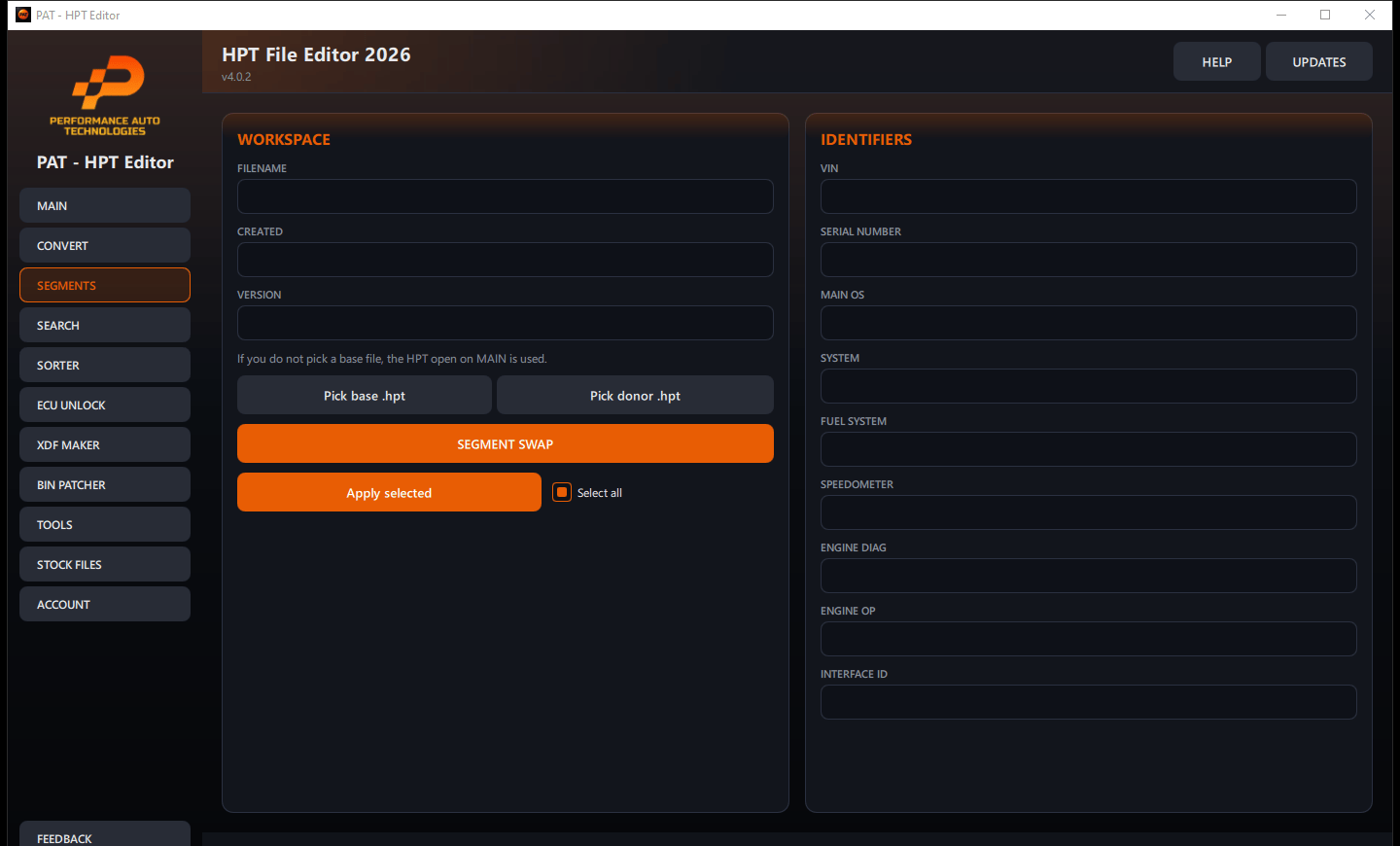

SEGMENT SWAP:

• Segment Swap: Select donor and target files, choose segments, apply copy, and save swapped result.
  If prompted, re-open/analyze target to verify values before final save.

---

RECOMMENDED WORKFLOWS:

CTZ -> Edit -> EFI BIN (best for EFI Live output):
1) CTZ to HPT -> saves .hpt + .e41 sidecar
2) Open and edit the .hpt file
3) HPT to CTZ -> auto-loads .e41, saves EFI .bin with valid checksums

CTZ -> Edit -> HPT:
1) CTZ to HPT -> saves .hpt file
2) Open and edit the .hpt file
3) Save as new HPT

HPT -> EFI BIN (no CTZ source):
1) Open HPT file
2) HPT to CTZ -> prompted for reference EFI BIN (optional)
3) Saves EFI .bin file

Notes:
– Keep backup copies before any write operation.
– For Segment Swap, only swap compatible donor/target files.
– CTZ to BIN, HPT to CTZ, and CTZ to HPT all work standalone (no HPT file required).
– For locked .ctz files, check the ‘Locked File’ checkbox before clicking CTZ to BIN.
– If an HPT is loaded, CTZ to HPT imports data into its segments instead.
– If an operation fails, reopen the original file and retry with fresh output path.

---

ECU UNLOCK (GPEC UNLOCKER): (COMING SOON)

Unlocks GPEC ECU calibration .bin files by patching specific bytes
or replacing the full flash content with an unlocked version.

Supported ECU types:
– GPEC2: Diff patch at 2 offsets (larger files)
– GPEC2A 2015+: Diff patch at 2 offsets (medium files)
– GPEC2A 2019+: Full 256KB overwrite with unlocked flash
– GPEC3: Full 256KB overwrite with unlocked flash
– GPEC4: Full 256KB overwrite with unlocked flash

How to use:
1) Click the ‘ECU UNLOCK’ tab in the top navigation bar.
2) Select your ECU type from the dropdown, or leave it on auto-detect.
3) Click ‘Load File’ and select a .bin calibration file.
The tool will auto-detect the ECU type if possible.
4) Check the status indicator:
– Red ‘Locked’: File is locked and ready to unlock.
– Yellow ‘Already Unlocked’: File has already been patched.
5) Click ‘UNLOCK’ to apply the unlock patch.
6) Click ‘SAVE FILE’ to save the unlocked file.
Default output name: <original>_unlock.bin

Notes:
– Only .bin files are supported (raw ECU calibration dumps).
– For GPEC2A 2019+, GPEC3, and GPEC4, the entire file is replaced
with an embedded unlocked version (256KB).
– For GPEC2 and GPEC2A 2015+, only specific bytes are patched.
– Auto-detection works best for GPEC2 and GPEC2A 2015+ types.
For 256KB files, select the correct type manually if needed.
– Always keep a backup of your original file before unlocking.

---

FEEDBACK & MESSAGING:

Submit bug reports, feature requests, or general feedback directly
from within the app. The developer can reply to your submissions,
creating a two-way conversation thread.

How to use:
1) Click the FEEDBACK tab in the sidebar.
2) Fill out the form: select type, enter your name/email,
describe the issue, and optionally attach files.
3) Click SUBMIT. You will receive a ticket ID (e.g. FB-A1B2C3D4).
4) Replies from the developer appear in the Messages area
on the right side of the Feedback tab.
5) Select your ticket from the dropdown to view the conversation.
6) Type a reply and click SEND REPLY to respond.

Notification indicator:
When new replies arrive, an orange dot with unread count appears
on the FEEDBACK button in the sidebar. The app checks for new
messages every 30 seconds automatically. Click Refresh to check
manually. The dot clears when you visit the Feedback tab.

---

XDF DEFINITION FILES:

Download XDF definition files for your calibration OS directly
from within the app using a credit-based system.

How to use:
1) Click the XDF tab in the sidebar.
2) Register a new account or log in with your email/password.
3) Load an HPT file – the OS will be auto-detected.
4) Available XDF files for your OS will appear in the list.
5) To download, you need credits. Click ‘BUY CREDITS’ to
purchase credits ($10/credit) via Stripe secure checkout.
6) Select an XDF from the list and click ‘DOWNLOAD XDF’.
7) Once purchased, you can re-download the same XDF for free.
8) Click ‘REFRESH’ to update your balance and file list.

---

ECU PATCHER: (COMING SOON)

Automatically patch your ECU calibration with one click.
This tool handles the full pipeline: export, patch, checksum,
import, and segment swap – avoiding checksum errors.

How to use:
1) Load a stock HPT file in the main window.
2) Click the ECU PATCHER tab in the sidebar.
3) The OS will be auto-detected from the loaded file.
4) Select a patch variant from the dropdown (Main, DEF_RESET).
5) Click ‘PATCH FILE’ to run the automated pipeline.
6) The log panel shows progress for each step.
7) Output is saved as ‘filename_patched.hpt’.
8) Click ‘REFRESH’ to check for new patches from the server.

Supported OS: 12709842, 12709843 (more added via server updates).

---

HPTeditorNew: One Platform for File Unlocking, Conversion, Editing, and Segment Management

HPTeditorNew is a purpose-built desktop application designed for users who need a fast way to edit/unlock/convert when working with new HPT files. Instead of using multiple versions of vcm suite, Stay up to date with the newest file types and support. This new HPT Editor brings core operations together in a single, tab-based interface so you can move from import to output with advanced functions and better file control.

Core Features

1) Main / Unlock Workspace

• Dedicated MAIN/UNLOCK area for primary file operations

• Built-in tools for file handling and prep

• Integrated hex editing environment for direct low-level inspection and changes

2) HPT ↔ BIN Conversion

• Unified HPT-BIN | BIN-HPT file conversion

• Clean, guided interface to reduce format-handling mistakes

• Designed to simplify movement between common calibration file formats

3) Selective Segment Swap

• Segment swap workflow designed for controlled transfer operations

• Choose and apply segment-level changes with a practical UI flow

• Built for users who need precision rather than all-or-nothing swaps

4) CTZ ↔ HPT & HPT ↔ CTZ (11-16 LML & 17-23 L5P)

• Convert .hpt to .ctz and .ctz to .hpt

• Built-in .ctz -> .bin converter

• 11-16 E86A & E86B LML, and 17-23 L5P support. (Working on more module/engine support)

5) Secure Licensing Architecture

• Uses PAT-RSA1 licensing model

• Hardware-bound activation model for stronger license control

• Built to support commercial deployment scenarios

• Added SHA256 Hash verification to verify genuine application

Key Features

• ✅ Supports New HPT Files (VCM Suite 5.3+)

• 🔁 HPT ⇄ BIN Conversion

• 🧠 Automatic Metadata Parsing

  • VIN

  • ECM Serial

  • Main OS / Base ID

  • Interface ID

• 🗂 Save to Older HPT Format (when applicable)

• 🧩 Integrated Hex Editor

• 🔓 File State Handling (based on file structure)

• ⚡ Fast, lightweight, standalone Windows application

• 🎯 Designed for professional calibration environments

---

Typical Use Cases

• Converting new HPT files to BIN for analysis or external tools

• Reviewing OS and module identifiers without opening VCM Suite

• Working with mixed-generation HPT files in legacy workflows

• File inspection and recovery after interrupted reads

• Professional tuning, R&D, and off-road calibration projects

---

Compatibility

• HP Tuners VCM Suite: 5.3+

• Operating System: Windows 10 / Windows 11

• File Types: .hpt, .bin

---

What’s Included

• HPT File Editor 2026 executable

• Lifetime access to included features for this release

• Future updates may be offered separately

---

Important Disclaimer

This software is intended for professional and advanced users.
It does not replace HP Tuners software or licensing.

Use of this tool is the responsibility of the end user.
For off-road, closed-course, research, or diagnostic use only.
Always comply with all local, state, and federal laws and regulations.
