PAT – Calibration Toolbox (V4.2.9) Windows/MacOS | Calibration/Tune File Toolbox | XDF Downloader |

Description

---

Already Purchased?

Go to https://pat-update.com/updates/PATCalibrationToolbox/ to get the latest version and view product information, this will also fix any and most issues when it comes to functions not working, errors, or licensing issues.

BECOME A RESELLER!

Go to https://pat-update.com/api/reseller/Register.aspx and create an account. Someone will contact you shortly. License keys can be generated from your web browser, as well as Android or IOS

The all-in-one calibration workstation

PAT Calibration File Editor  from Performance Auto Technologies is a professional tune-file workstation for working with Different ECU Bin file calibrations such as Cummins CM2450/CM2350/CM871/CM2200/, GM E41, Ford VBF/PHF. One tool for open → edit → convert → patch → save workflows.

Version 4.0.2 is a major release. The editor has been rebuilt from the ground up with a faster, cleaner native Windows client and the same PAT cloud services. A native macOS edition is now available for purchase and shares the same modern interface and tabs.

---

What’s new in v4.1.5

• Completely rebuilt Windows client – faster and cleaner, with the modern PAT dark/orange theme.
• Native macOS edition now available– built from the same design, arriving on the Mac App Store.
• Hardened security – the calibration engine runs behind your licensed online session, so the app stays protected against tampering and unauthorized copies.
• New bundled PAT VBF/PHF ↔ BIN converter tool.
• All 3.8.x cloud features carried forward – XDF Maker, server BIN Patcher, Stock Library, Search, remote Help, and more.

---

What you can do

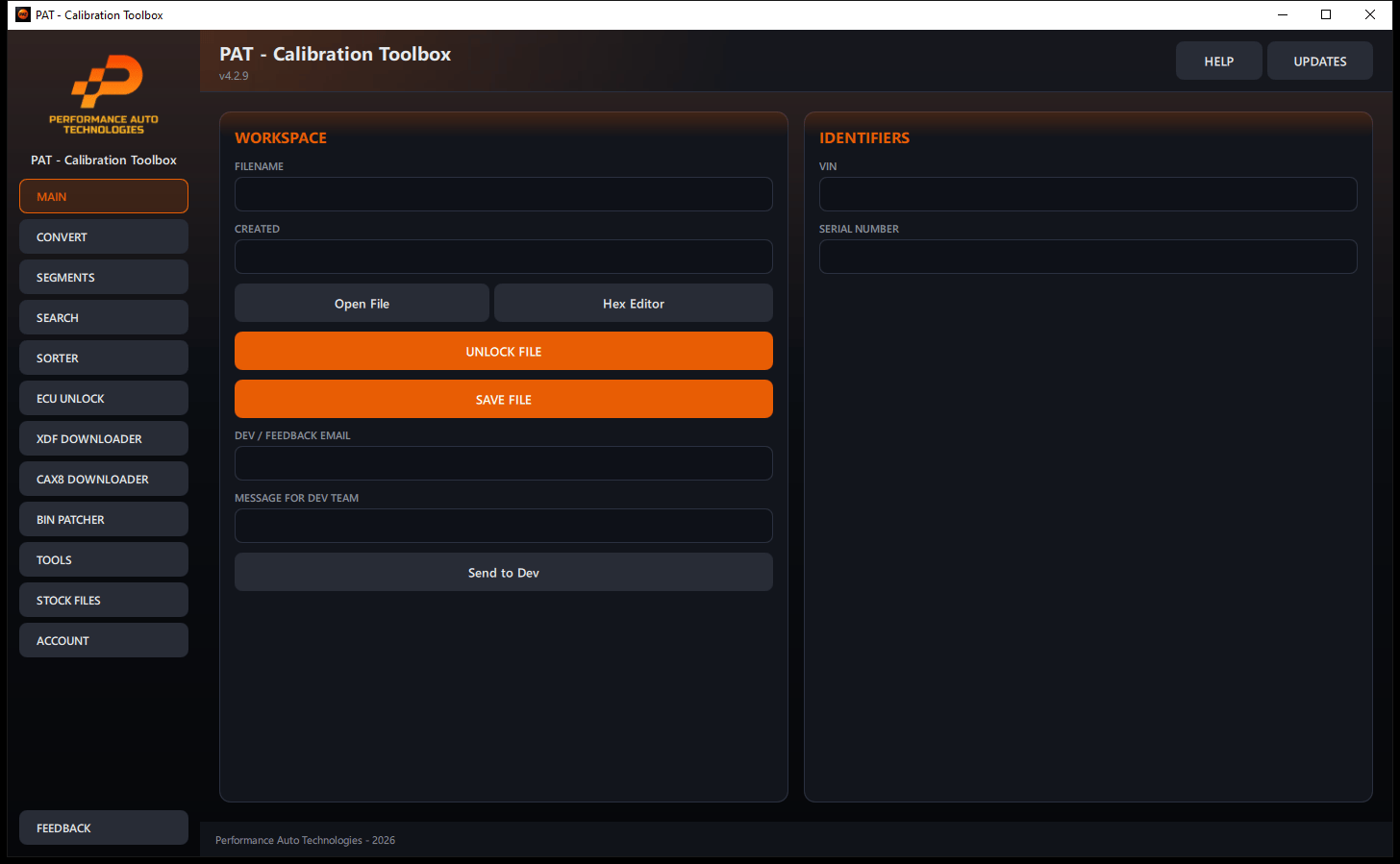

MAIN – Open, analyze & edit

• Open and analyze .bin, vbf/phf, xcal, ctz, mpc files
• Full hex editor with find/replace (hex or ASCII) and write-back
• Send files to PAT dev support directly from the app
• More support coming for other modules for some of the other conversions
• Specific handlers to correctly convert cummins CM2450 files to open correctly in winols

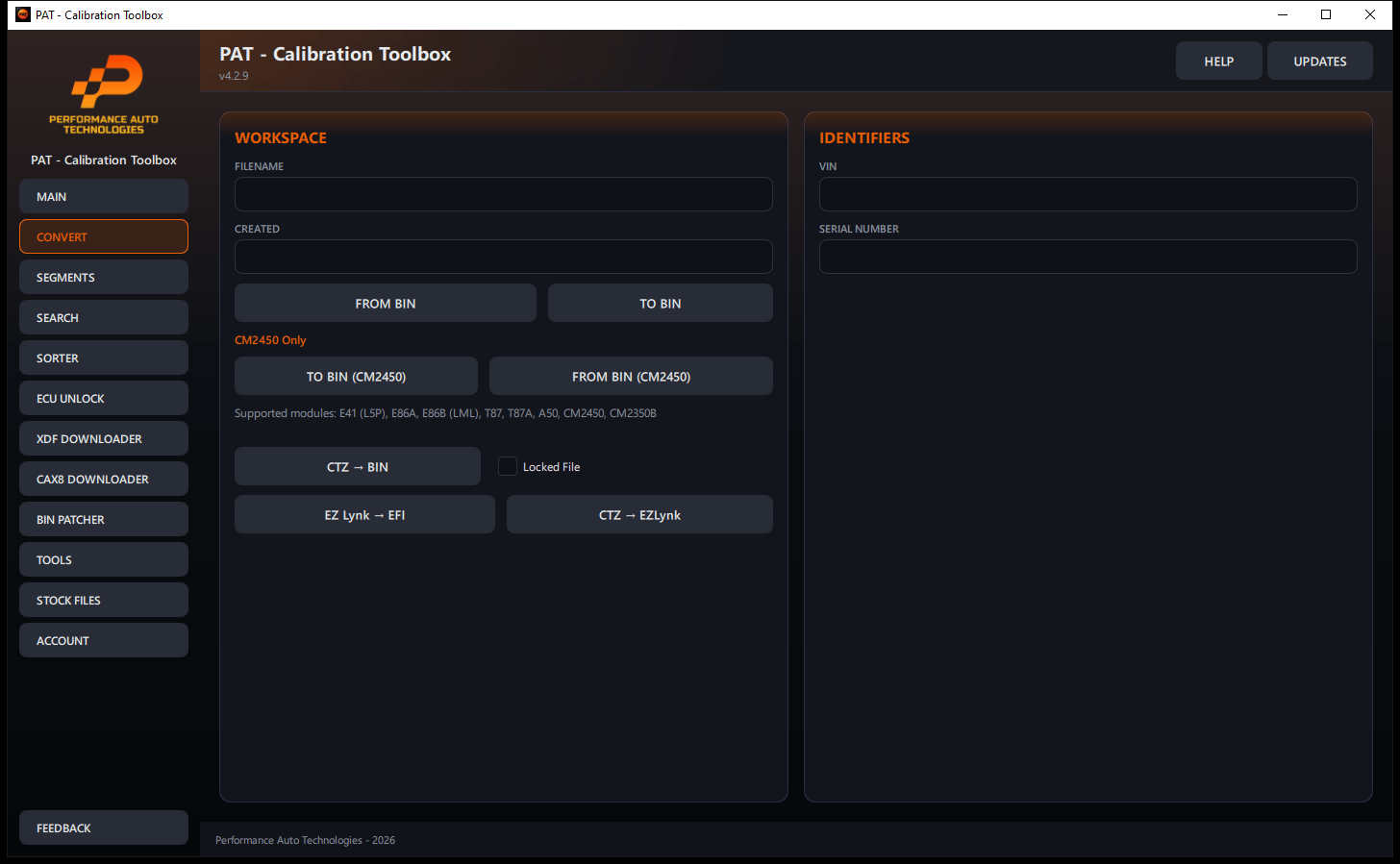

CONVERT – Tune Editor

• Built In hex compare tool for bin files
• CTZ to BIN with Locked File Conversion
• Bin File Resizer for different platforms such as KESS, Trasdata, Flex, EFI or EZlynk for L5P, LML, E86A, T87, T87A, A50
• XCAL to BIN, VBF to BIN to convert between OEM Cummins and Ford files and Binary for use with hex editors like WinOLS

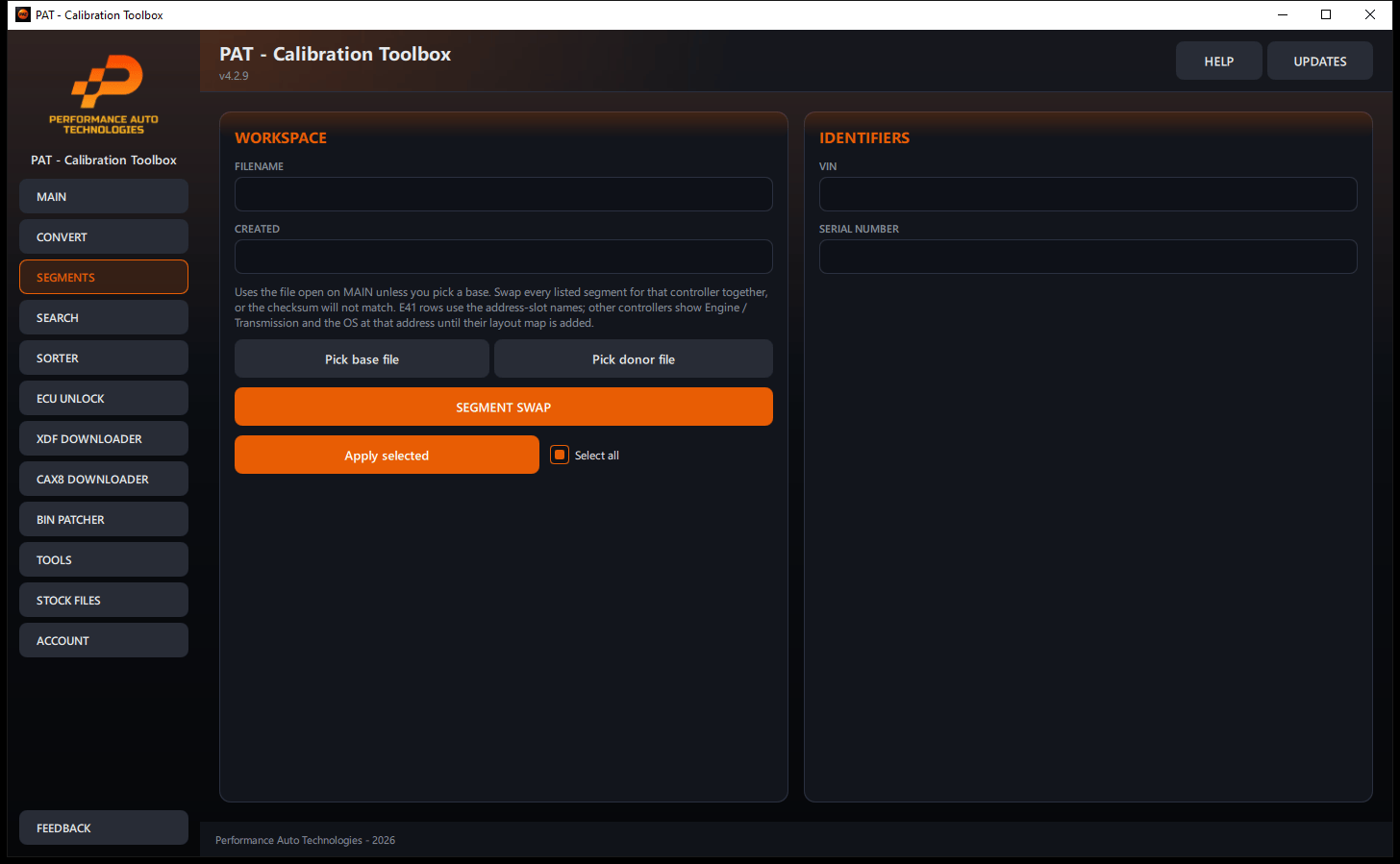

SEGMENTS – Segment swap

• Copy selected segments from a compatable bin file
• Ideal for transplanting cal sections between compatible files while keeping checksums intact

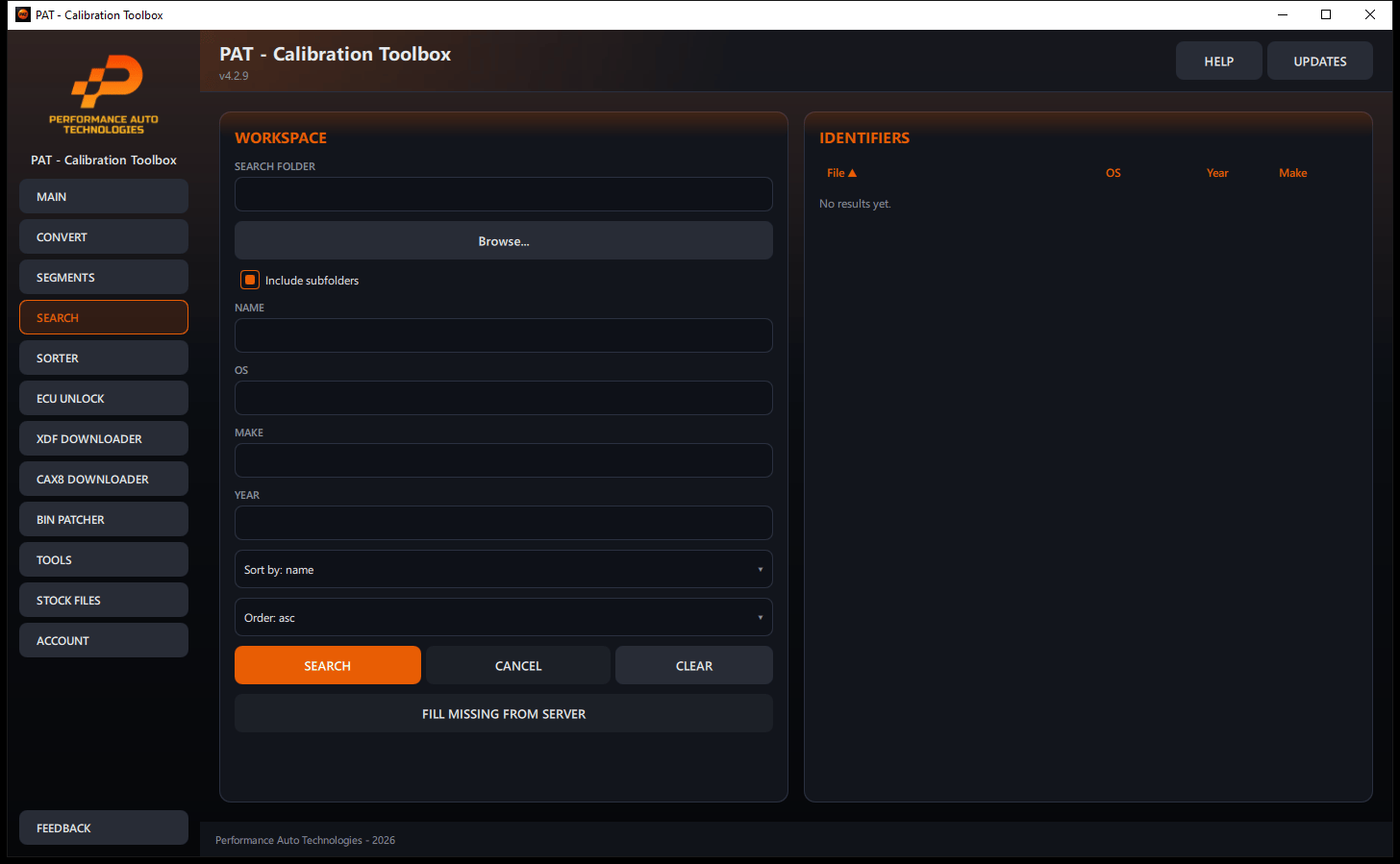

SEARCH & SORT – Manage large tune libraries

• Folder Search – search for files by OS, make, year, name, cal name

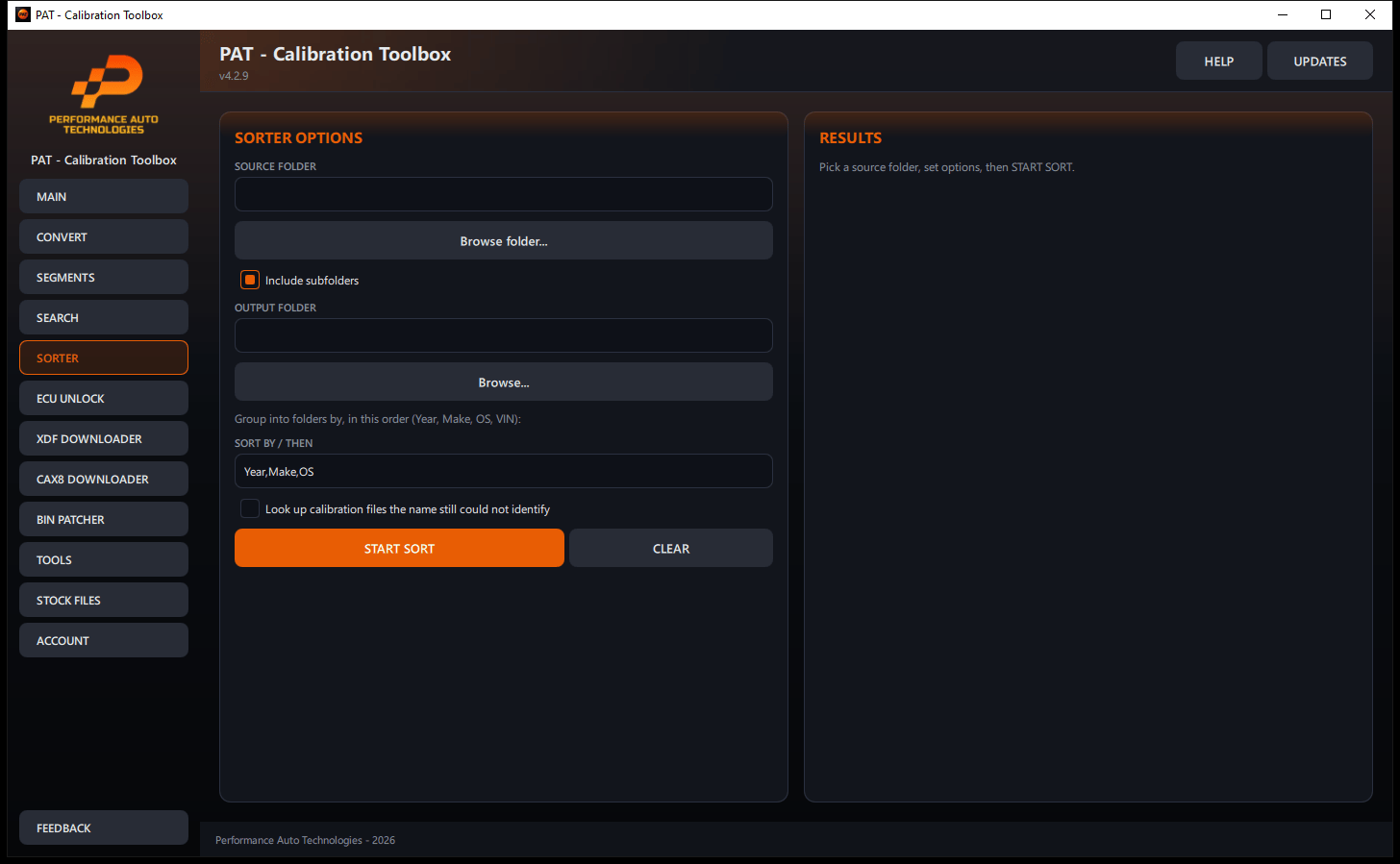

• File Sorter – batch organize files into nested folders (OS / Year / Make)
• Copy or move modes with progress tracking

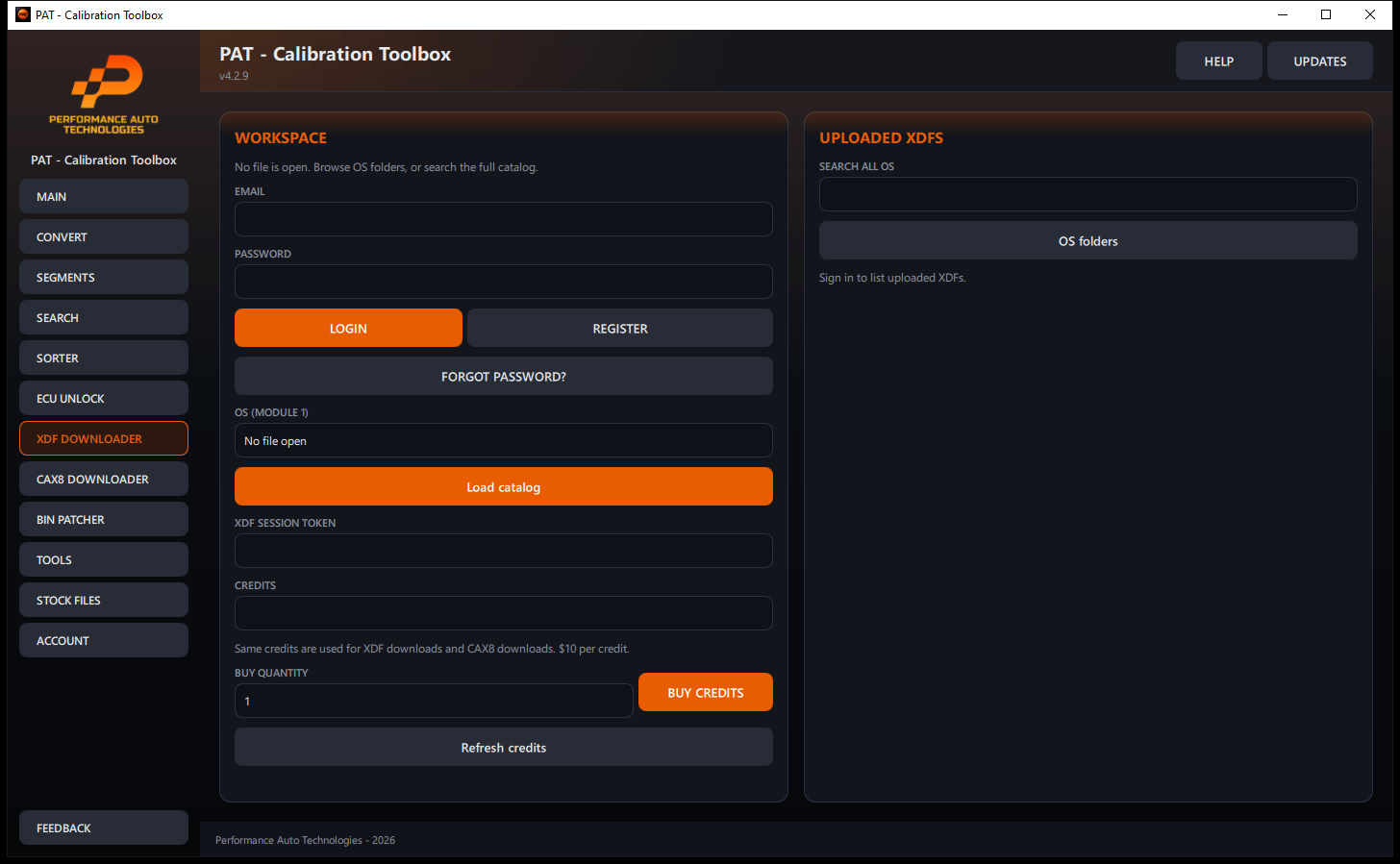

XDF MAKER – Definition downloads (credit-based)

• Register/login with shared PAT account
• Browse and download XDF definitions matched to your file’s OS ID
• Re-downloads of owned XDFs are free
• Download XDF files for work in winols, tuner pro, or other tools that support XDFs

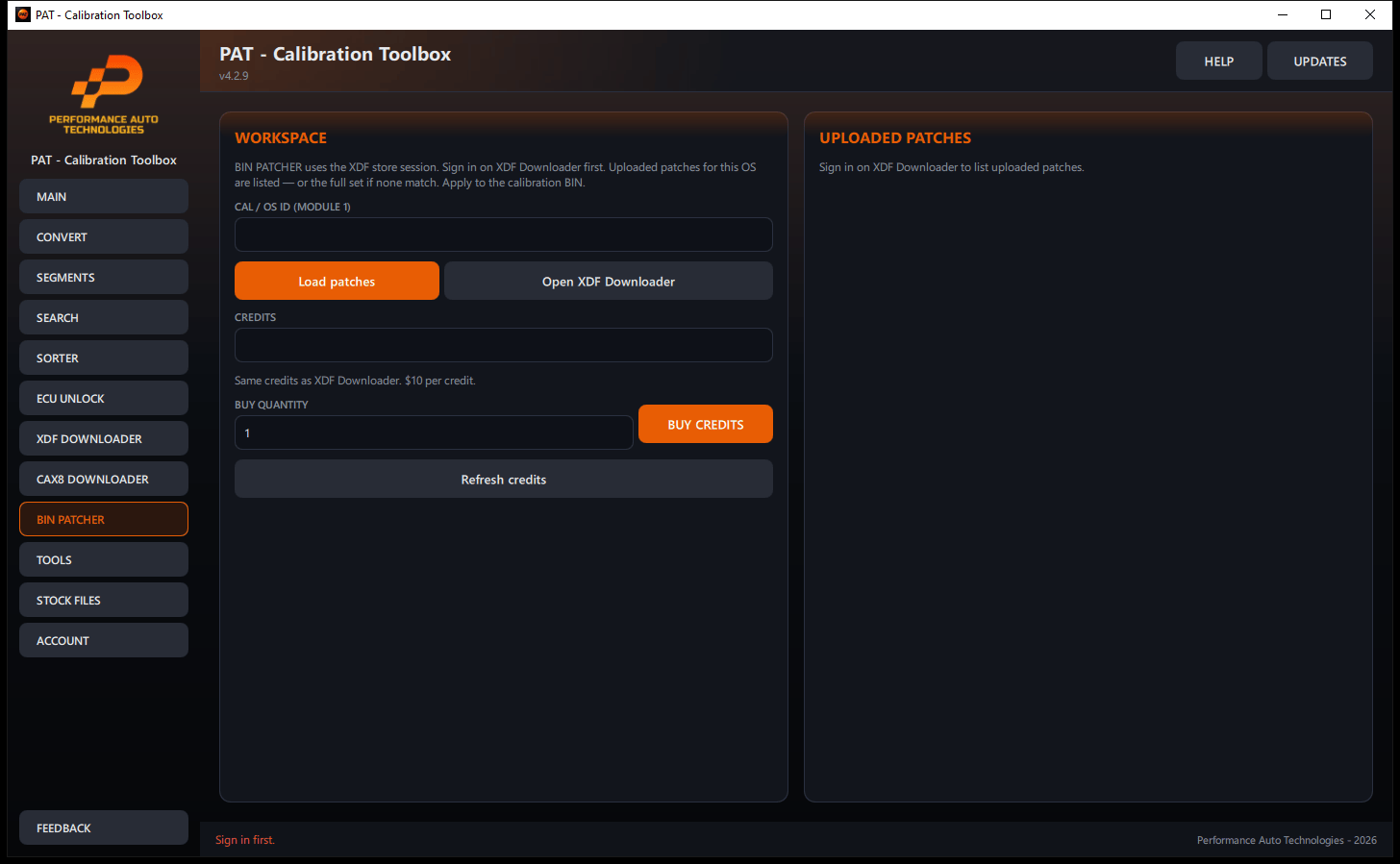

BIN PATCHER – One-click server patching (credit-based)

• Load stock bin → select patch variant → receive patched bin back
• Server applies patch, fixes checksums, and rebuilds your file
• Patch catalog updates from PAT servers – no manual patch files to manage

STOCK FILES – Online calibration library

• Search and download stock calibration files from our file server, collection includes xcal, bin, vbf/phf files
• Filter by make, module, OS, model, keyword, and more

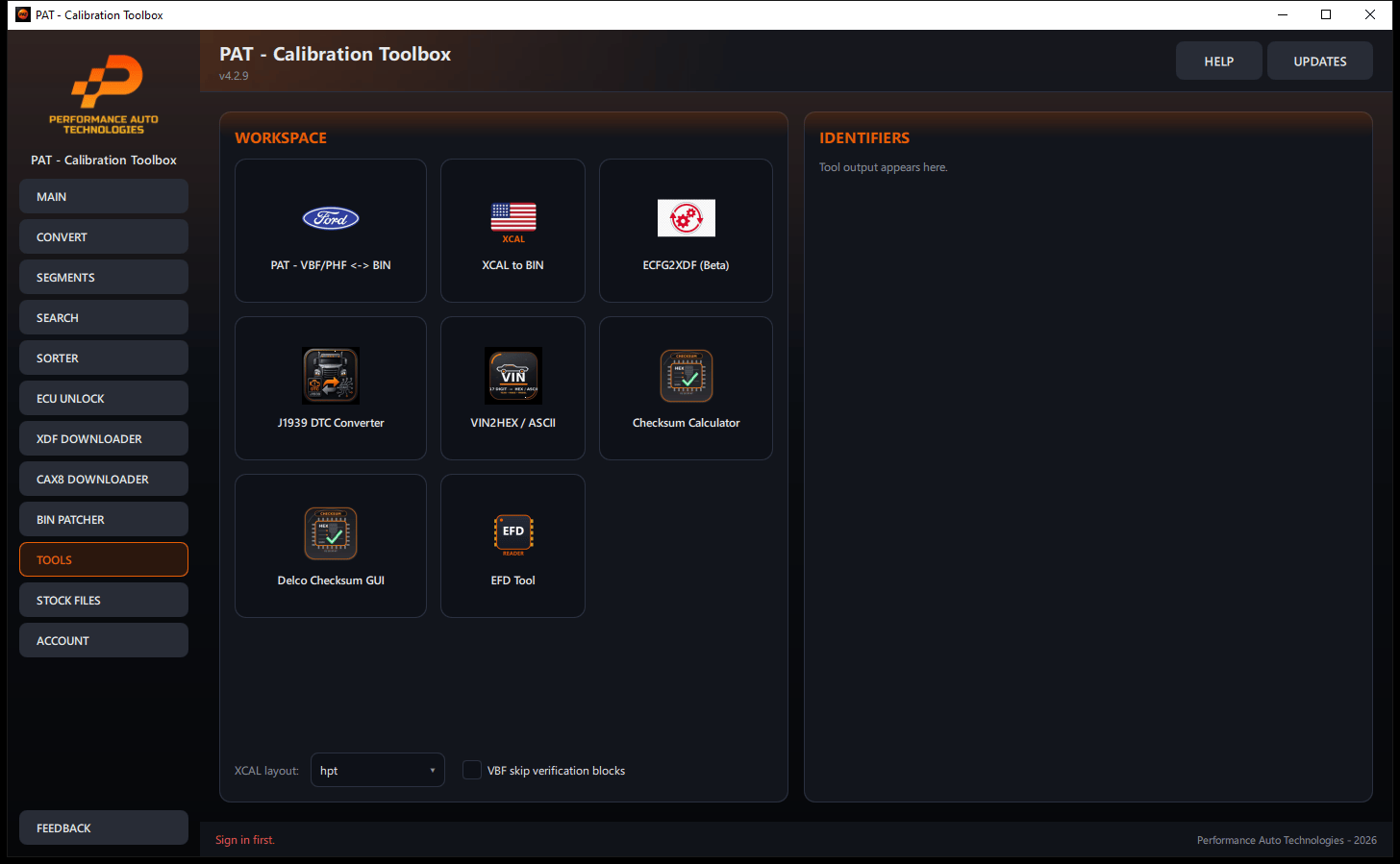

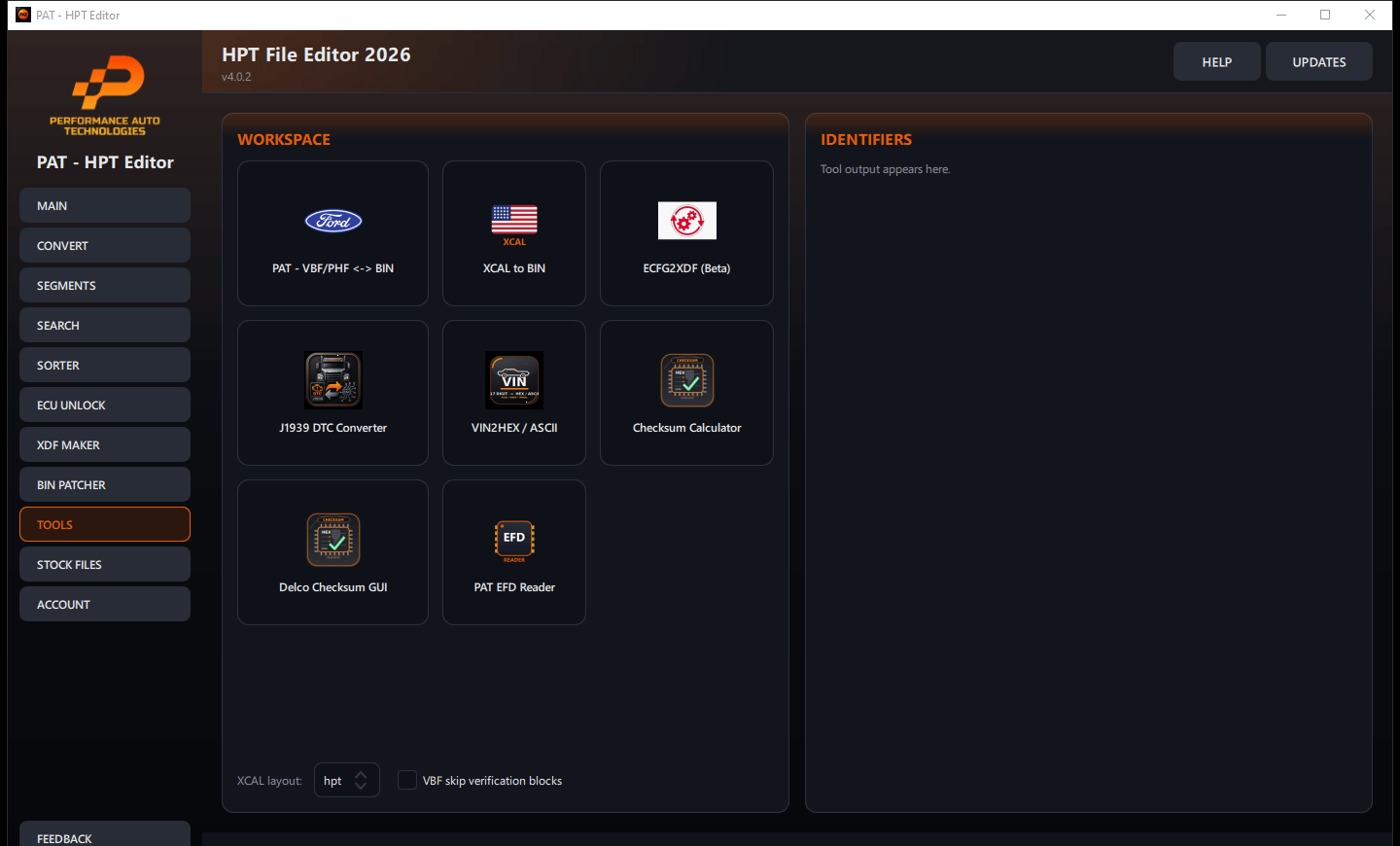

TOOLS – Built-in utilities

• Ford VBF → BIN
• PAT VBF/PHF ↔ BIN converter (new in v4)
• Cummins XCAL/HEX → BIN (CM24xx / CM2350B)
• ECFG2XDF (Beta) – Cummins ECFG to XDF
• PAT EFD Reader – open FCA/Stellantis .efd flash encryption files
• J1939 DTC Converter
• VIN2HEX / ASCII utilities
• Checksum calculators (LSuite PAT-themed + Delco support)

FEEDBACK & SUPPORT

• In-app support tickets with ticket IDs and two-way messaging
• Attach files, receive developer replies inside the app
• Unread reply notifications

---

What’s included with purchase

• PAT Calibration File Toolbox – Windows 10/11 setup .exe or MacOS .dmg file
• License / activation – PAT-RSA1 per-machine online activation (Windows)
• Free in-app updates
• Remote help content – documentation updates without reinstalling
• Access to PAT cloud services (XDF, patches, stock library, unlock API)

Note: XDF downloads and BIN patches use a separate credit balance inside the app (purchase credit packs separately if offered).

---

System requirements

• Windows: Windows 10 or Windows 11 (64-bit)
• macOS: macOS 26 (Tahoe) or later – for Apple Silicon
• Internet: Required for license verification, updates, XDF, BIN patcher, stock library, and GPEC unlock API
• Disk space: ~150 MB for application + working space for tune files
• Account: PAT account for XDF Maker / BIN Patcher credits

---

License & activation

• Windows: Licensed per activation (hardware-bound online verification); license key delivered after purchase
• macOS (Now Availablw): download instantly after purchase and activated through same PAT-RSA1 keys
• Tampered or unauthorized builds are blocked for your protection
• Subject to PAT End User License Agreement (shown during install)

---

Why tuners choose PAT – Calibration Toolbox

• Rebuilt for multi-os support – a faster native Windows client, now with MacOS support
• One app, many formats – stop juggling half a dozen utilities
• Cloud-connected catalog – XDFs and patches update from PAT servers
• Built for speed – fully rebuilt native performance, batch tools, folder search
• Professional support – in-app tickets with direct developer replies
• Actively maintained – v4.0.2 with ongoing updates and security hardening

Publisher: Performance Auto Technologies
Support: In-app Feedback tab + PAT support channels
